Assembly assistants (MAXO-MS-AA)

  • Assembly assistant with hub on the factory floor

As mobile workbenches, the assistive function of the mobile systems make optimal human-machine interaction possible. Their adjustable working height enables them to adapt ergonomically to the respective worker for safe working directly on the mobile assistant.

Our product range for assembly assistants

Back to top

Your benefits

  • Optimum support

    because the autonomous assembly assistant is an intelligent workbench that enables safe working directly on the assistant

  • Smooth process sequence

    thanks to state-of-the-art navigation, positioning and communication technologies

  • Fast and wear-free travel

    via the MOVITRANS® contactless inductive energy transmission, which can be used as a line cable and for point charging
Back to top

Assembly assistant (MAXO-MS-AA005) up to 350 kg payload

Description

Technical data

  • Dimensions: L = 1200 mm, W = 600 mm, H = 715 – 1015 mm
  • Weight: Min. 450 kg
  • Payload: Max. 350 kg
  • Speed: Max. 1 m/s
  • Positioning accuracy: +/-2 mm to +/-25 mm
  • Lift: Max. 300 mm
  • Power supply: Inductive charging, energy storage unit
  • Navigation: SLAM*, inductive/RFID**
  • Communication: LightLAN, WLAN


*SLAM - Simultaneous Localization and Mapping

**RFID – radio-frequency identification

Back to top

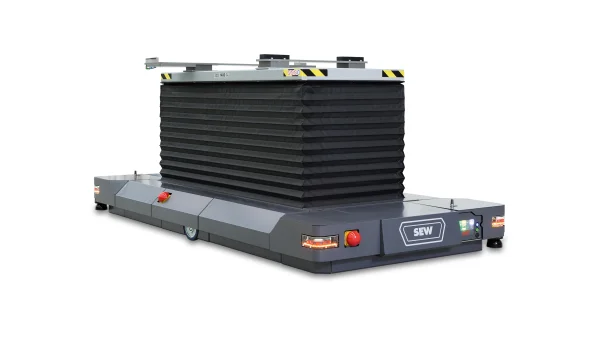

Assembly assistant (MAXO-MS-AA-015) up to 1400 kg payload, for the automotive industry

Description

Technical data

  • Dimensions: L = 3200 mm, W = 1500 mm, H = 370 – 1470 mm
  • Weight: Min. 1700 kg
  • Payload: Max. 1400 kg
  • Speed: Max. 1 m/s
  • Positioning accuracy: +/- 5 mm to +/- 25 mm
  • Lift: Max. 1100 mm
  • Power supply: Inductive charging, energy storage unit
  • Navigation: SLAM*, inductive/RFID**
  • Communication: LightLAN, WLAN


*SLAM - Simultaneous Localization and Mapping

**RFID – Radio-frequency identification

Back to top

Mobile workbenches for optimum human-machine interaction

The latest communication and navigation technologies are utilized to ensure that the assembly assistants are always at the right time at the right assembly location with the required material. LightLAN-based optical data transmission not only permits communication between the vehicles, but also provides information regarding the current operating state of the vehicle, i.e. whether it is currently moving, moving in a straight line, braking or turning, etc.

We have designed an application-specific assembly assistant specially for the automotive industry. It is used in the final assembly of vehicle bodies and can therefore support loads of up to 1400 kg.

Back to top
