Decentralized extra-low voltage drives are especially suited for applications with power ranges between conventional servo drives and miniature drives. The DC operating voltage range of 48 V offers the additional advantages of extra-low voltage regarding compact design, electrical safety and simplicity.

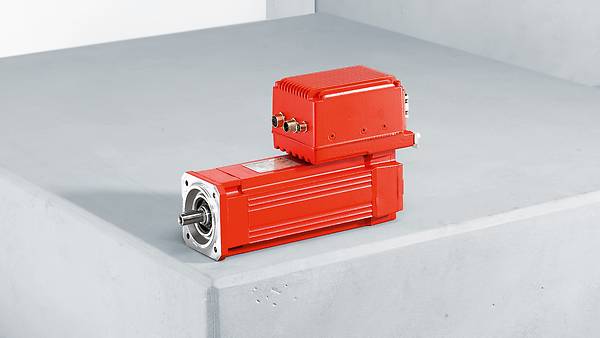

The CMP ELVCD: A little voltage with a lot of benefits
Up to now, extra-low voltage drives have been particularly in demand for applications in the automotive and consumer goods industries. However, compared to conventional industrial servo drives, this field has different product requirements in terms of robustness, durability, serviceability and scalability.
This is why, during the conception of the CMP ELVCD, our focus was not on yet another extra-low voltage drive, but rather on creating a complete industry-standard, decentralized servo drive with all the characteristics of an SEW-EURODRIVE servo gearmotor.
For this reason the CMP ELVCD is fully integrated into our automation system with MOVI‑PLC®. It can be used for all automation tasks with dynamic and precise motion sequences up to 500 W.
Get in touch with us.
- Our experts know your industry and requirements.
- Our global network ensures we are there wherever and whenever you need us.
- We have the expertise and the tools to provide optimum support and advice.
Your benefits
-
Great electrical safety
At extra-low voltage of DC 48 V -
High performance
Up to max. 0.5 kW -
Coordinated multi-axis motions
Thanks to integration into our MOVI‑PLC® motion and logic controller -
Flexible gear unit combinations
Because multiple drives are connected and supplied on a single phase winding.
Features
The CMP ELVCD is always combined with the MOVI-PLC® advanced controller. All control tasks are determined centrally and transferred to the drives synchronously. Complex motion profiles and robotic tasks are possible. Almost all motor and gear unit designs that can be combined with the CMP50M or CMP50S motor system can also be implemented with the CMP ELVCD.
Technical data

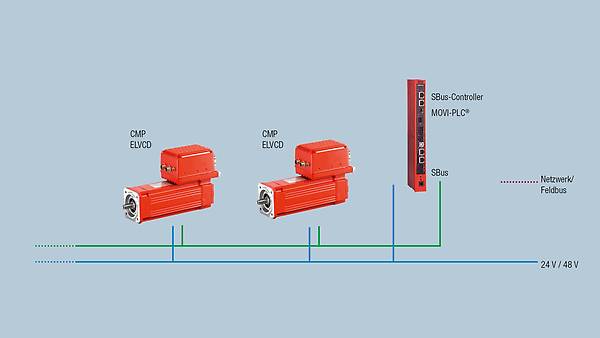

Installation topology with the CMP ELVCD decentralized extra-low voltage servo drive
- CMP ELVCD is supplied with DC 24 V (control) and DC 48 V (power).
- A controller from SEWEURODRIVE, which functions as central head station via SBus, is used to control the drive.
- The controller is responsible for the coordination and the higher-level motion control for all connected drives.
- Depending on the power demands and the synchronicity of the drives, several drives can be connected and supplied via one phase winding.
- The controllers used offer conventional interfaces for higher-level automation levels. The automation system can also be operated independently as a module.
| Technical data of the CMP ELVCD | |||
|---|---|---|---|
| CMP 50S | CMP 50M | ||
| Connection voltages | DC link voltage | DC 48 V nom. (max. DC 60 V) | |
| Electronics supply | DC 24 V ± 20% | ||
| Input current | IRated | 15 A | |
| IMax | 35 A for 2 s | ||
| Operating temperature | ϑU | -25 °C to +50 °C (no condensation) | |
| Storage temperature | ϑL | -25°C to +70°C (EN 60721-3-3) | |
| Motor power | at ϑU = 20 °C | 330 W | 500 W |
| at ϑU = 40 °C | 230 W | 330 W | |
| Nominal motor speed | 3000 rpm | ||
| Nominal motor torque | at ϑU = 20 °C | 1.05 Nm | 1.6 Nm |
| at ϑU = 40 °C | 0.75 Nm | 1.05 Nm | |
| Degree of protection | IP 65 according to EN 60529 | ||
| Dimensions (L x W x H) | MIN | 150.5 x 85 x 150 | 189.5 x 85 x 150 |
| MAX | 217 x 85 x 150 | 256 x 85 x 150 | |
| Weight | Without brake | 2.9 kg | 3.55 kg |
| With brake | 3.25 kg | 3.9 kg | |
Areas of application
It can be used for all automation tasks with dynamic and precise motion sequences up to 500 W.
Application examples for the CMP ELVCD decentralized extra-low voltage servo drive
Multi and single-level shuttle systems in container logistics
The CMP ELVCD is used as drive for telescopes and conveyor belts for the automation of entire load handling devices. The drives are controlled via a moving control cabinet or via a completely decentralized unit. This allows for the implementation of compact, flexible logistics applications.
AGVS and logistics vehicles
Depending on the performance data of the vehicles, the drives can be used as travel drives and lifting drives as well as load handling devices. This technology can be combined with MOVIPRO® decentralized drive, positioning and application controllers and MOVITRANS® contactless energy transfer systems to create an attractive overall solution.
Gripper and handling units
Combined with our conventional servo drives such as the MOVIAXIS® multi-axis servo inverter, the CMP ELVCD is perfectly suited to reduce weight and optimize the cabling, especially for mobile gripper and handling units. It can be controlled directly via a MOVI‑PLC® motion and logic controller.
